MATLAB / Simulink Adapter Documentation

1. Getting Started: Using the Adapter

1.1 Introduction

• Attach a Project.

• Publish a Project.

• Refresh a Project.

1.2 Accessing the Adapter

Once the plugin application is installed, the SBE Digital Thread application is visible under Apps
menu.

1.3 Attaching & Connecting

Datasource type i.e. SIMULINK

1.4 Publishing Items

The following Meta Classes are currently supported

• Model Blocks

• Requirement

• Variable

The following Metaclasses of System Composer are support

Please note System Composer is currently support for Publish only

• Component

• SMPort

• Interface

• Connector

• ValueProperty

• ValueType

The following Relations are currently supported

• Relations between Requirements

• Relations between Model Blocks

• Relations between Model Block and Requirement

1.5 Refreshing Items (Including Subscribed Items)

The following Meta Classes are currently supported

• Model Blocks

• Requirement

• Variable

1.6 Verify

Performs a validation check to ensure that the items published from SBE exist in the target system (e.g., MATLAB) and are consistent.

What does Verify check?

• The Verify operation compares each item present in both SBE and the target/source system.

• It ensures that:

  • All properties (e.g., Summary, Status, Priority)

  • All relations (e.g., Linked issues, Child Of)

  • All metadata (e.g., Subscription Info)
    are accurately synchronized and consistent between the systems.

This helps ensure that no item is missing, degraded, or out-of-sync after publishing.

Verify is supported from version 7.05 for Woburn and 8.01 for Melrose and above.

1.7 Advanced Operations

Force Publish

Force Publish triggers a full publish of data, regardless of whether only a subset of data has changed since the last operation. It bypasses the usual "delta" mechanism, which would otherwise only send changes since the last publish. This is useful when you want to ensure that all data is sent to the target system, even if some data hasn't changed or if previous publishes may have missed something.

Force publish is available starting from version 8.x.

Force Refresh

Force Refresh triggers a full refresh of data from the source, again bypassing the delta mechanism. It ensures that the local or client system is completely updated with the latest data from the source, not just the changes since the last refresh. This is helpful for resolving sync issues or when you want to guarantee that the client has the most up-to-date and complete data

Forces refresh is available starting from version 8.x.

1.8 Troubleshooting for End Users

Failed to Publish

This may occur due to the following reasons:

• Incorrect Mappings
  Ensure all required mappings are correctly configured. Refer to the Mappings Configuration section for guidance.

• Invalid Authentication
  The authentication may be outdated or incorrect. Please reconfigure it as explained in the Authentication Setup section.

• Publishing with Stale Data
  To resolve this, reset the channel, this operation will clear up the stale.

2. Document Overview

2.1 Document Overview

This document provides essential information for using, configuring, and supporting the SBE Vision adapters for MATLAB. It covers multiple adapter products, each supporting different versions of the external tool.

2.2 Document Orientation

This document is designed to inform users with various roles:

• End Users should begin with Section 1 to understand how to access and operate the adapter, and Section 5 for issues pertaining to the setup, configuration, and use of the digital tool itself.

• Digital Thread Specialists should focus on Section 1, and also consult Sections 3, 4, and 5 for deployment and semantic mapping. Section 11 contains details related to mapping items from this tool into a semantic ontology.

• Administrators should refer to Section 6 and beyond for setup, security, support, and version management.

Back to Top

3. Adapter Use Cases

3.1 Adapter Overview

The purpose of this adapter is to allow the data contained within instances of MATLAB to connect with the SBE Digital Thread platform. Given that MATLAB is a rich-client tool, the usage of this adapter is governed by end users operating that tool on the desktop of their workstation. This adapter was built using the SBE Java Pro-SDK product.

Back to Top

4. Supported Versions

4.1 Supported Adapter Products

This document covers all the version of adapter that support SBE 7.x (woburn) and 8.x (Melrose), Look at the releases section for more details

4.2 External Tool Versions Supported

• 2024a

• 2024b

• 2025a

4.3 Differences Across Tool Versions

Block Refresh with Masking is available onwards 2024b version

4.4 Supported Plug-Ins and Add-Ons

• Requirement management toolbox

• System Composer

Back to Top

5. Digital Tool Best Practices

5.1 Tool Configuration Considerations

The Adapter currently support creation of limited number of Block types, see section block types for more details

The System Composer module is currently supported only for Publish

5.2 Usage Tips & Gotchas

• Once you have completed the installation, follow the below steps to perform DigitalThread operations:

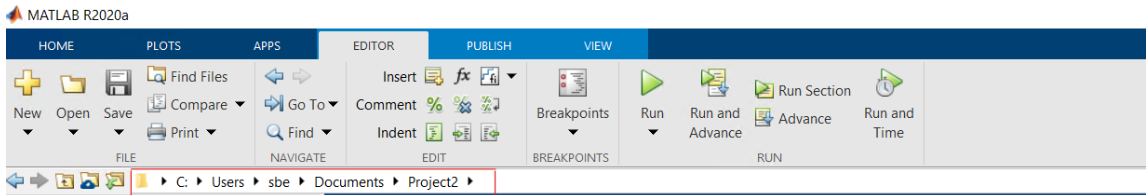

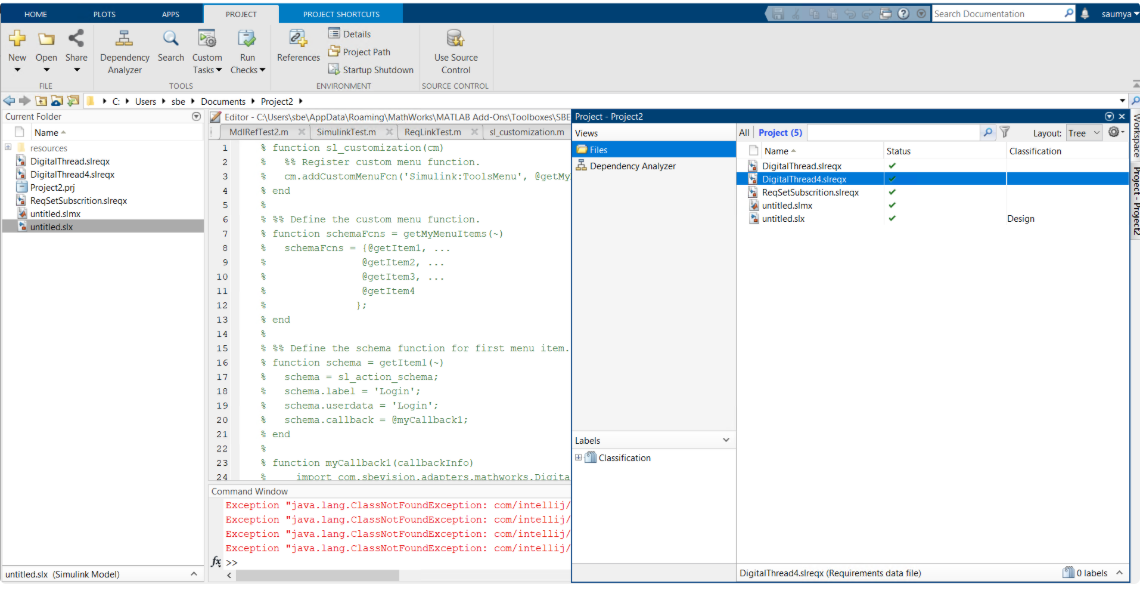

  • Launch MATLAB and navigate to the path of project as shown below.

• We need to Load a project to start using the Adapter.

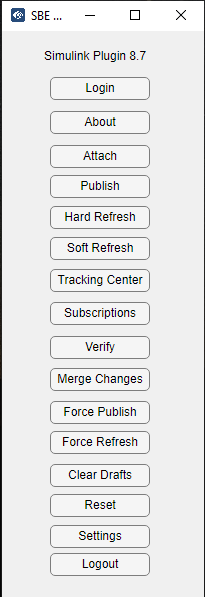

• Launch the SBEDigitalThread application.

• All the DigitalThread Operations will be shown in an application window.

5.2.1 How to Create a New Project in MATLAB:

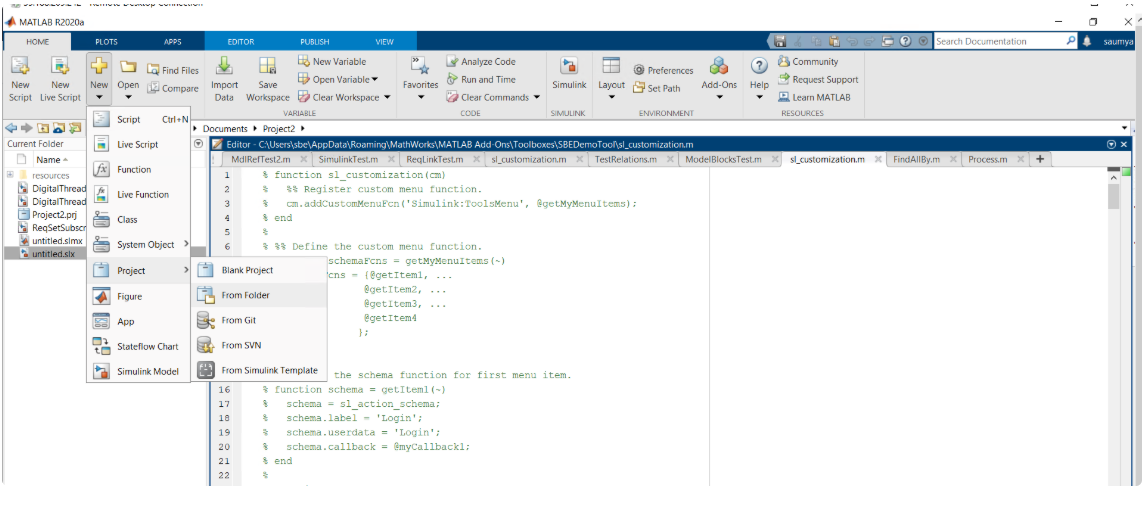

There are two options to create a Project in MATLAB In Home menu, click on the new button, you’ll find an option Project in the Dropdown

• From Folder → If certain files which are already present or created and if you want to use it in the Project, then create a folder and add all the required files in it. Select that folder after clicking on “From Folder” option. All the files present in the folder will be present in the Project.

• Blank Project → This option will create a Blank Project and after creation we have to add files manually in it.

For more details see Matlab documentation

5.2.1.1 How to Add Files in the Existing Project?

• Paste the Required Files in the Directory where the Project exists.

• Open MATLAB and Load the Project by double-clicking on it.

• Once the Project is loaded, all the files which are present in the same folder will be visible in the loaded project as shown below.

• Loaded Project can be seen on the extreme right side of Application.

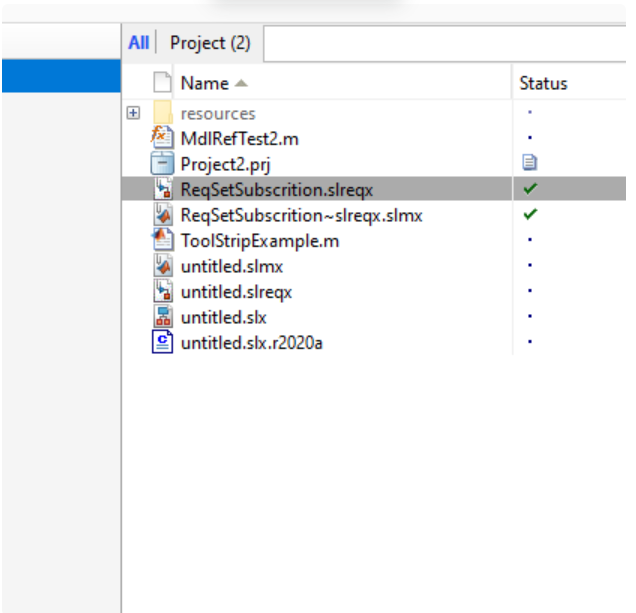

• Files which are Added in the Project can be seen with the Green tick mark.

• Files which are not added in the Project will not have a Green tick mark, these files can be added by right-clicking on it.(An option will be shown to add in the Project).

5.2.1.2 How to support different types of blocks during Refresh?

• Shape Id’s of the Blocks will be the types that are currently supported, the STEREOTYPE shape will be the block type.

• The METACLASS shape will always be Block

• Types Supported: Subsystem, Constant, Merge, Inport, Outport, Step, Product, Divide, Gain)

5.2.1.3 Supported Link Types between Block and Requirement

• Simulink supports only the following types of links between Block and Requirement, [Relate, Implement, Verify, Derive, Refine, Confirm].

• A default link type Implement will be used for any unknown link types.

• This type can be changed manually after the sync operation in Simulink Requirement Editor.

• For Link’s to get correctly published, ensure that the source and target artifacts are visible in the Requirement Editor for a created link.

5.2.1.4 Important Note

• A Matlab project is needed for the plugin to work.

• Any data, Requirements, Blocks, Variables or Links which need to be sent to Digital Thread must be added to the project

• .slx, .slreqx, .slmx if these files are present in the project then make sure they are added to the project.

For the files to be published make sure if the status of the file is having green tick as shown in the above screenshot.

5.2.1.5 Link Storage Instruction

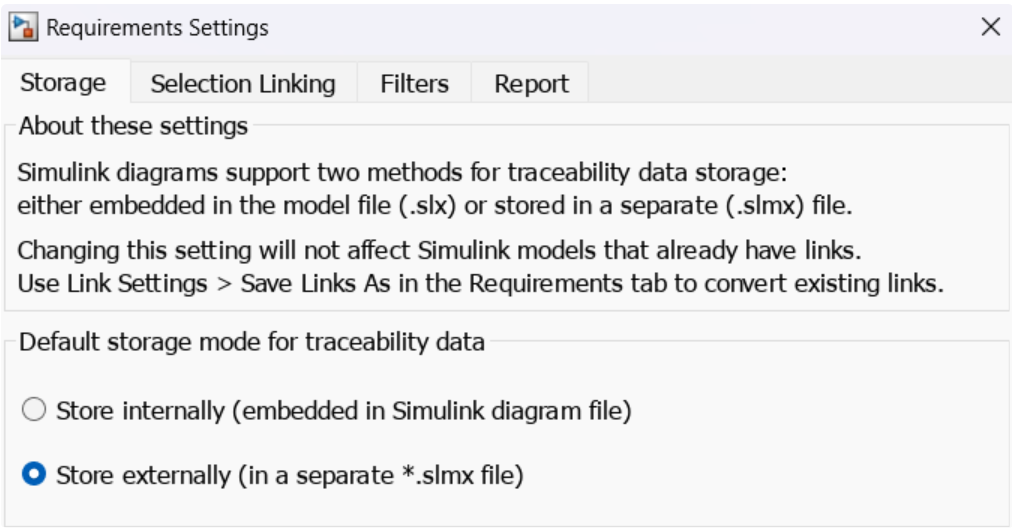

• Make sure that the external storage option is chosen for link creation. As the plugin reads the .slmx file to publish the links.

5.2.2 How to Create and Save Link’s between Requirements

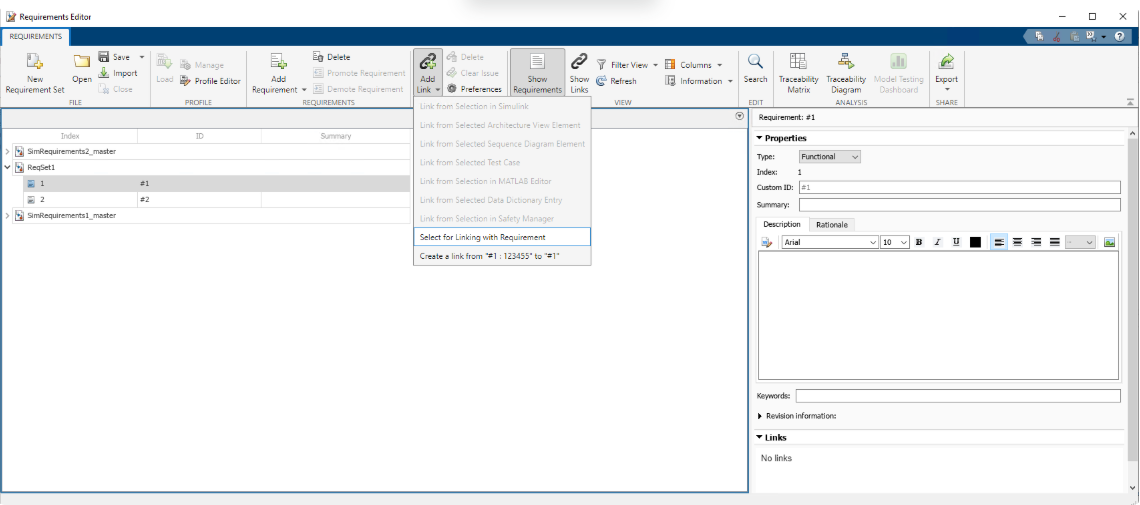

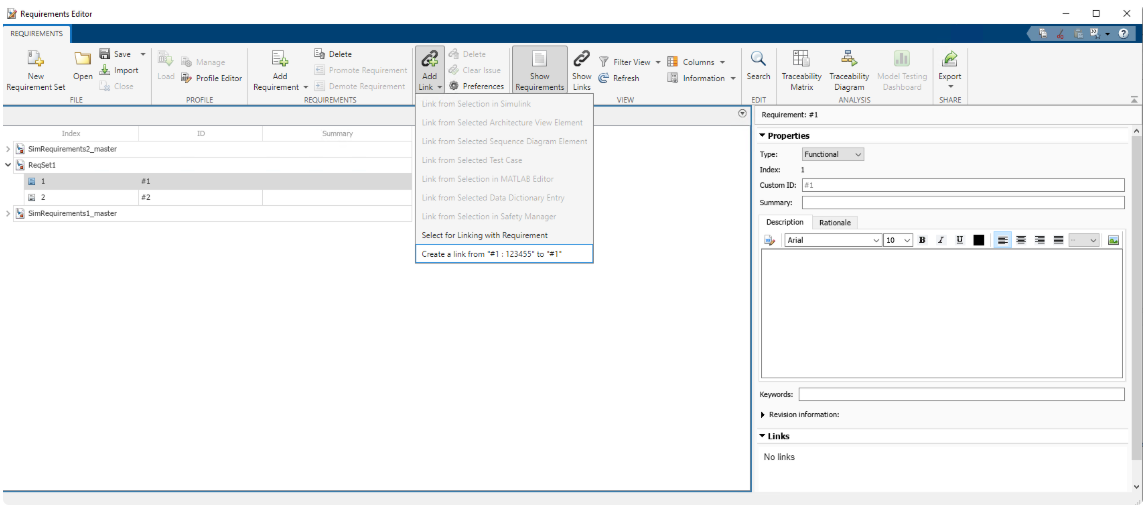

• Select any of the requirement you want to create link on, click on Add Link -> Select Linking with Requirement

• Now select the other Requirement you want to create a link with, there will be Create link From "1st selected Requirement's ID and Summary" to "2nd selected Requirement's ID" option.

5.2.3 Variable Support

• For a csv file to be published, make sure it always contains a prefix DT- in the name. For example - DT-demo-variables.csv.

• When Variables are subscribed, the plugin creates a file with naming format DT-$SubscriptionName. eg: DT-CreoVariables-master.csv.

• The following is the order of columns that are created during Subscriptions and the same expected for hand made files Name,Value,Type,Description,SubscriptionId,CorrelationId

5.2.4 Derives Link

To keep the Derives links in Matlab in line with SysML Derives, adapter publish the link
from both directions, source -> target and target -> source.

The relation from target -> source will be published with a prefix of INV:. eg: INV:Derives

Based on the requirement, either Derives or INV:Derives should be used.

5.3 Tool Limitations and Workarounds

Deletes

• Deleting Parent level Requirement which has two children Requirements in a hierarchy causes issue as Matlab deletes all children if we delete the parent Requirement. The Refresh can have side effects as the children might get auto created in some cases

• If we delete just the target of a link (in Digital Thread) and do a Refresh there is possibility of dangling links in Simulink

Back to Top

6. Installation

6.1 Installation Instructions

• OS - Windows

• Java - OpenJDK 11

This adapter works with only JDK 11 or higher

To check the java version used by matlab, run the following command in the Matlab console

version -java

To change the java version of matlab run the following command

jenv($PATH_JAVA_DIRECTORY)

Look at Matlab docs for more details

6.1.1 Installing the SBE Digital Thread Plugin

Starting version 7.21 and 8.7 the adapter is packaged as a standard Matlab toolbox

Download the installation package typically in format simulink-plugin-xx.zip

Extracting the zip file will give 2 files, the Matlab toolbox SBE DigitalThread-8.mltbx and the
logging config file log4j2.xml

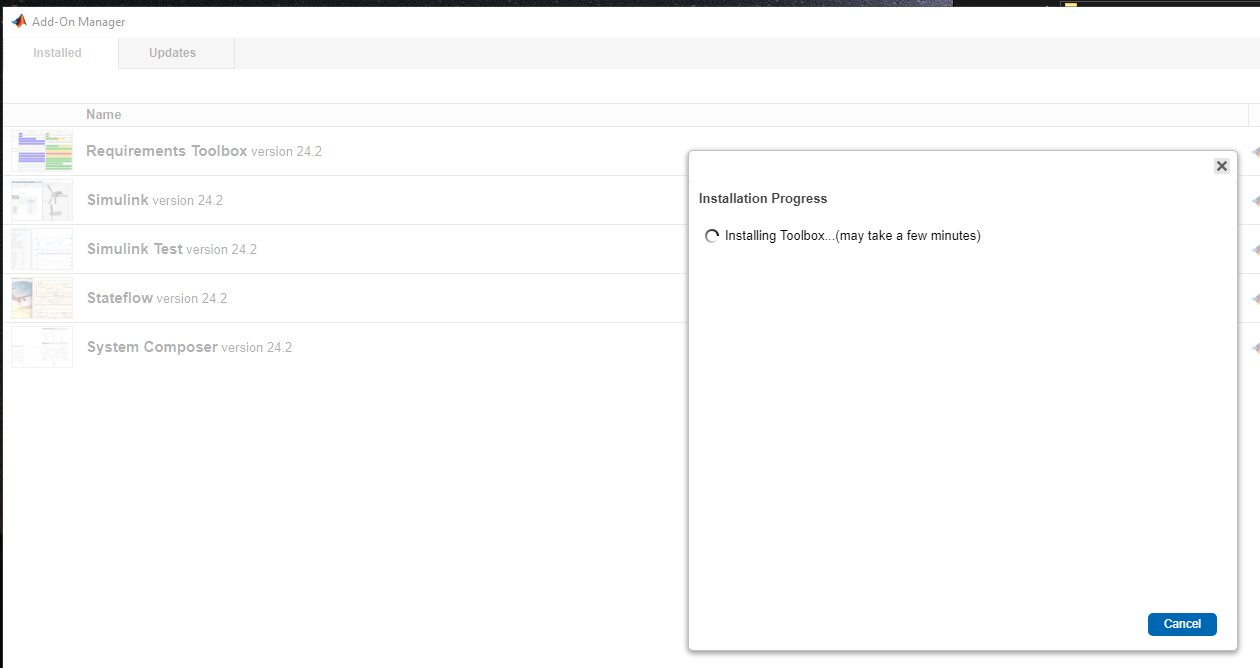

Double-click on the toolbox (mltbx), which will start the installation as show in the following screen

Please note if you have more than one version of Matlab installed, right click on the file and open
with the version where you want to install it

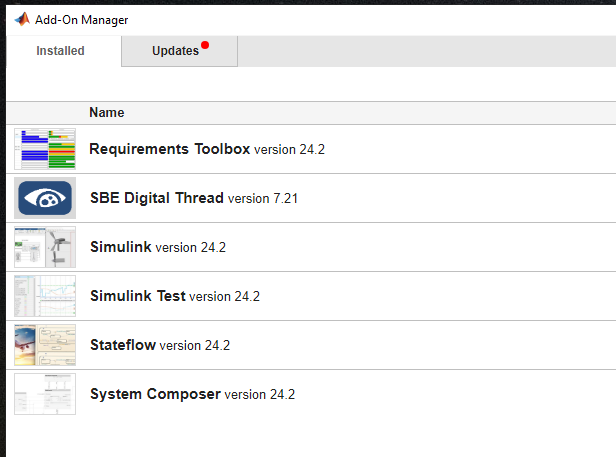

After installation is successful we can see the toolbox in Addons Manager

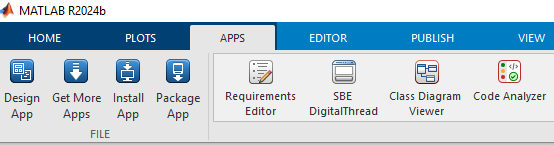

The App should be visible in the Apps tab

6.1.2 Uninstall

Uninstall the plugin from Addons Manager

6.1.3 Updating to new Version of Plugin

Double click on the toolbox (mltbx)

6.1.4 Legacy installation method

• Create a directory $USER_HOME/SBE/matlab.

• Copy the config.json and log4j2.xml files from matlab folder to $USER_HOME/SBE/matlab.

• Copy the Jar file under binaries to any directory, eg: c:\sbe\matlab\

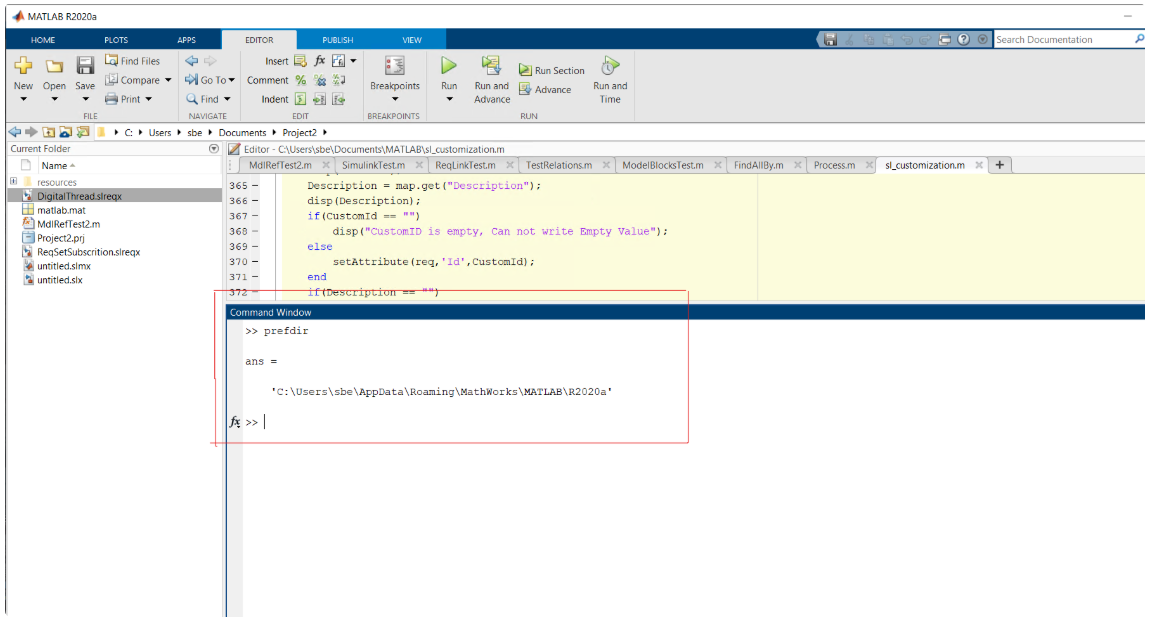

• Locate prefdir directory by running the command in MATLAB Command Window as shown below. Locate the javaclasspath.txt.

  • If file does not exist, create one and add full path to jar(which was copied in previous step). A sample classpath file is provided in install directory.

  • If it exists, edit and add the path to jar file

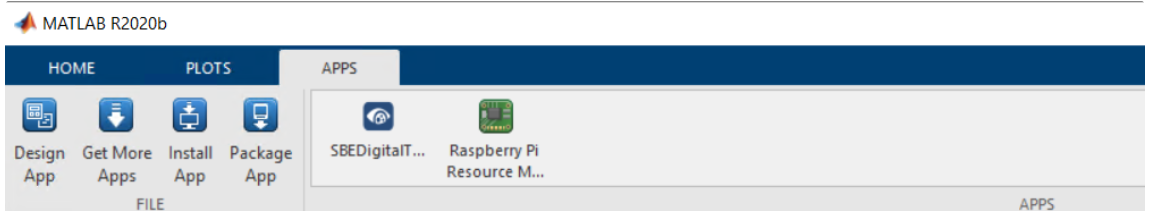

• Launch Matlab, navigate to Apps menu, install the installation file by clicking on Install App option.

• When clicked on Install App, a browse popup will be open, here select the installation file ( SBE DigitalThread.mlappinstall) under install directory. It will show a prompt to install the selected file, confirm it and the SBEDigitalThread application will be visible under Apps menu.

Updating the SBE Digital Thread Plugin

• Reinstall the SBE Digital Thread application.

• If required, update the path in javaclasspath.txt file.

• Restart matlab if path is updated in javaclasspath.txt.

6.1.4.1 Uninstall

• Uninstall the SBEDigitalThread App by right-clicking on it in Apps menu.

• Remove the entry from javaclasspath.txt

6.1.4.2 Updating to new Version of Plugin

• Please remove the installed App on Matlab and install the new app from the install package

• Copy the new Jar file and replace the entry in javaclasspath.txt

• Restart Matlab

6.2 Configuration

Before we can start using the plugin, we need to configure the plugin.

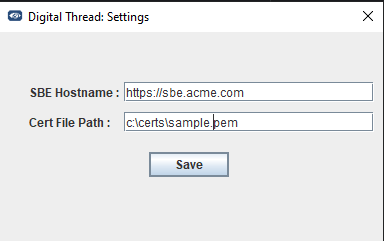

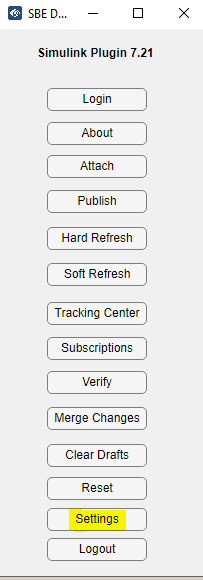

Launch the Matlab app and click on the Settings button to set the SBE Hostname and certificate
path(optional)

6.2.1 Legacy App configuration

• Create a directory $USER_HOME/SBE/matlab.

• Copy the config.json and log4j2.xml files from Matlab folder to $USER_HOME/SBE/matlab

• Update the config.json and set the SBE hostname and Certificate path

6.2.2 Logging configuration

To change the log level for the plugin, use the log4j2.xml file provided as part of the installation package.

The file must be copied to $USER_HOME/SBE/matlab directory. eg: C:\Users\TestEngg\SBE\matlab

6.3 DataSource Type Definition

More information about blocksConfig can be found in the How to support different types of blocks during Refresh section in Usage tips

Back to Top

7. Channels and Mappings

7.1 Channel Definition

• Datasource type i.e. SIMULINK

7.2 Approaches to Mapping

There are 2 different types of shapes on the Items published from Matlab, METACLASSand STEREOTYPE

The list of Metaclasses supported by the adapter is listed in Schema section

The STEREOTYPEshape is used to denote the type of the Block/Requirement in Simulink

For the System Composer module the STEREOTYPEshape is used to represent the applied Stereotypes on that Element

8. Security and Access

8.1 Secure Communication

The adapter communicated with SBE server using https and grpc, the necessary ports must be opened on the firewall for the adapter.

The port 443 is needed for https communication

Protocols in Use

• gRPC: For fast, bidirectional, binary communication between systems.

• HTTPS: For browser-based access and RESTful services.

Back to Top

9. Release Notes

9.1 Version History

8.7

• Support Reset

8.6

• Fix bug on relation creation between Block and Requirement

• Fix embedded Browser Login issue

• SDK 8.18

8.5

• SDK 8.16

• Added new buttons Clear Drafts, Force Publish and Force Refresh

8.4

• Merge features from release 7.20

• Support Lines Publish

• SDK 8.15

• Adapter supports JDK 11+ and Matlab 2023a+

8.3

• SDK 8.9

• Merge features from release 7.16

• Fix issues with Refresh

8.2

• SDK 8.8

• Merge features from release 7.15

8.1

• SDK 8.3

• Merge features from release 7.5

8.0

• SDK 8.0

• Support SBE 8.x

7.21

• SDK 7.51

• Support System Composer (Publish Only)

• Move from App to Toolbox based installation

7.20

• Fix Hard Refresh issue with Link between Blocks

• Support Line Publish

• Support Clear Drafts

7.19

• Fix issue with Requirement Refresh

• Improvements on Refresh

7.18

• Blocks types are determined from Datasource Property

• Fix issue with Soft Refresh

• Fix issue with changing direction of Derives link

• SDK 7.49

7.17

• Support Block Refresh

• Support Block-Requirement and Block-Block Relation’s

• Support Item and Relation Delete

• Bug fixes on Refresh

• SDK 7.48

7.16

• Support Soft Refresh(Requirements, Variables)

• Bug Fixes and Improvements

• SDK 7.47

7.15

• Fix issue with Refresh

7.14

• Fix issue with Variable file headers

7.13

• Fixed issue with Multiple Refresh of Requirements

7.12

• Move Block config to Datasource

• RequirementSet file names are as per Subscription/Partition name

7.11

• Fixes issue with Description/Rationale (During Refresh)

7.10

• Added support for types in Variables

• Fixes issue with link (Relation between Block and Requirement)

• SDK 7.44

7.9

• Fix issue with publishing Blocks

• Move to JX 7.41.3

7.8

• Fixes issue with updates of Variables

• Added better Attach Info UI

• Added Description field and column(in csv) for Variables

7.7

• Added Diff/Merge button on Plugin

• Minor Fixes and improvements on Refresh

7.6

• Support Variables (Publish and Refresh)

• SDK 7.39

7.5

• Implement Verify

• SDK 7.36

• Show SBE Url in title bar of the dialogs

• Multiple subscription migrate support fix

• Support Relation deletion for Authoritative and Subscribed items(Containment between Requirement)

7.4

• Support addition of CorrelationId Tag on Existing items during Migrate(Only Requirements)

• Token timeout extended with refresh token

• SDK 7.27

7.3

• Improved browser config

• Publish Lines with relations

• Fixes and Improvements in Publish of a Model

7.2

• SDK 7.15

7.1

• Support NativeItemsUpdaterV2

• Support CorrelationId storage on external Items(Requirements)

• Fixes and Improvements in Refresh Process

• Support rebase

7.0

• Support SBE 7.x

• Support Migration (6.x to 7.x)

• Improvements in UI for Publish and Refresh

Back to Top

10. Technical Reference

10.1 Adapter API Endpoints

• Adapter API endpoints are not applicable for this tool.

10.2 Identity

The following are the Locator properties for respective types

10.2.1 Metaclass: Block

10.2.2 Metaclass: Requirement

10.2.3 Metaclass: Variable

10.2.4 Metaclass: Component

10.2.5 Metaclass: SMPort

10.2.6 Metaclass: Connector

10.2.7 Metaclass: Interface

10.2.8 Metaclass: ValueProperty

10.2.9 Metaclass: ValueType

10.3 Configuration File Format Reference

The Variable type is represented by a csv file, the following is the guideline on how a csv should be created

• For a csv file to be published, make sure it always contains a prefix DT- in the name. For
  example - DT-demo-variables.csv.

• When Variables are subscribed, the plugin creates a file with naming
  format DT-$SubscriptionName. eg: DT-CreoVariables-master.csv.

• The following is the order of columns that are created during Subscriptions and the same expected for hand made files
  Name,Value,Type,Description,SubscriptionId,CorrelationId

10.4 Schema Support

The following are the metaclasses that are supported.

An Element can have two types of shapes, METACLASS and STEREOTYPE. Block and a Requirement are the METACLASS shapes. The types of Block and Requirement are published as STEREOTYPE shape.

10.4.1 Metaclass: Block

Is Abstract: No

Description: Simulink meta class Block

STEREOTYPE shape will have the Type of Block. CustomAttribute are Published with its PropertyName.

Links:

Types Supported: Subsystem, Constant, Merge, Inport, Outport, Step, Product, Divide, Gain

10.4.2 Metaclass: Requirement

Is Abstract: No

Description: Simulink meta class Requirement

STEREOTYPE shape will have the Type of Requirement.

CustomAttribute are Published with its PropertyName.

Links:

10.4.3 Metaclass: Line

Is Abstract: No

Description: Simulink meta class Line

10.4.4 Metaclass: Variable

Is Abstract: No

Description: Variables from Digital Thread

Variables of the following types are currently supported, look at Usage Guide for more details

STRING, INTEGER, FLOAT, BOOLEAN

10.4.5 Metaclass: Component

Is Abstract: No

Description: Component from the System Composer Toolbox

All the Stereotypes on the Components are published as STEREOTYPE shapes on the Element and all the properties defined on the Stereotype are published on the respective shapes

Links:

10.4.6 Metaclass: SMPort

Is Abstract: No

Description: Port from the System Composer Toolbox

All the Stereotypes on the Components are published as STEREOTYPE shapes on the Element and all the properties defined on the Stereotype are published on the respective shapes

Links:

10.4.7 Metaclass: Connector

Is Abstract: No

Description: Connector from the System Composer Toolbox

Link between 2 Ports

All the Stereotypes on the Components are published as STEREOTYPE shapes on the Element and all the properties defined on the Stereotype are published on the respective shapes

Links:

10.4.8 Metaclass: Interface

Is Abstract: No

Description: Interface from the System Composer Toolbox

All the Stereotypes on the Components are published as STEREOTYPE shapes on the Element and all the properties defined on the Stereotype are published on the respective shapes

Links:

10.4.9 Metaclass: ValueProperty

Is Abstract: No

Description: Value Property from the System Composer Toolbox

All the Stereotypes on the Components are published as STEREOTYPE shapes on the Element and all the properties defined on the Stereotype are published on the respective shapes

Links:

10.4.10 Metaclass: ValueType

Is Abstract: No

Description: Value Type from the System Composer Toolbox

All the Stereotypes on the Components are published as STEREOTYPE shapes on the Element and all the properties defined on the Stereotype are published on the respective shapes

Links:

Back to Top
